3 Main Types of Power Protection Devices – Their Advantages and Disadvantages

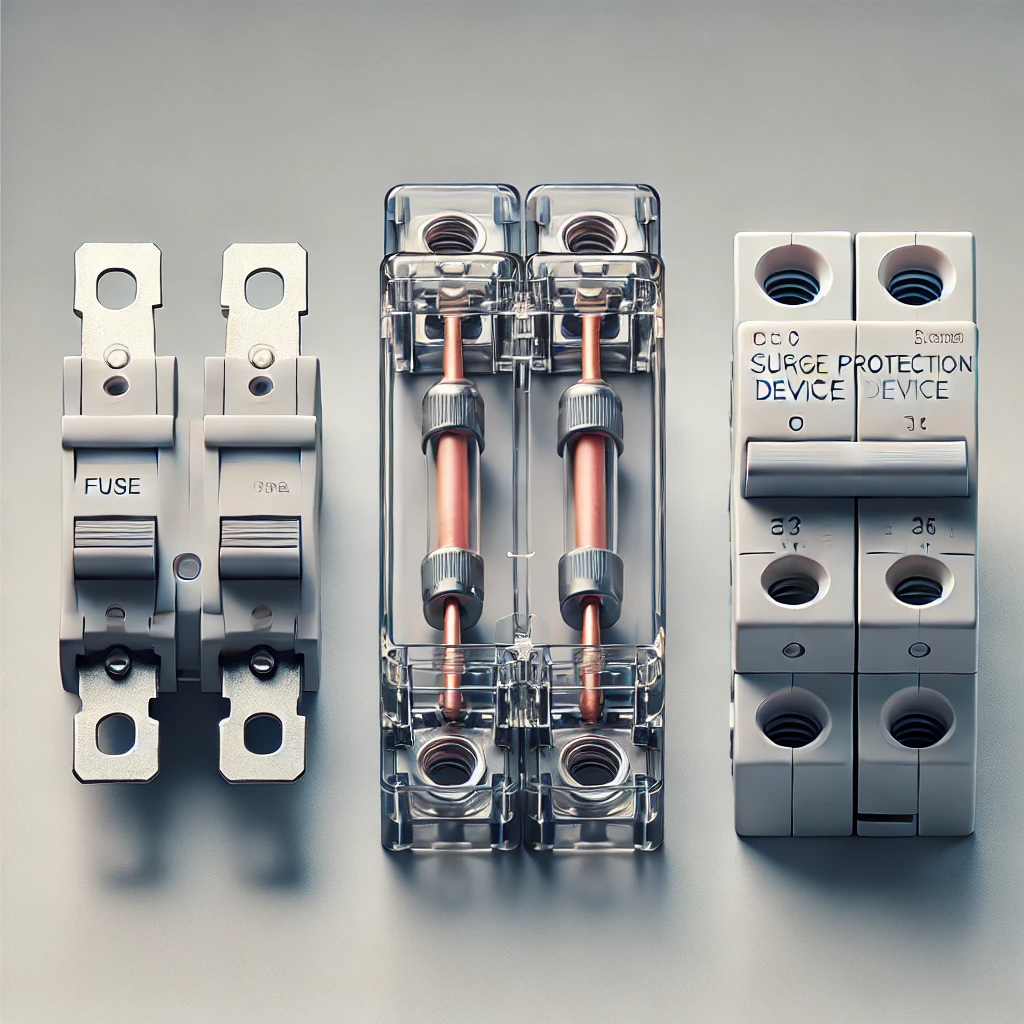

If you use electrical equipment, you know how important it is to protect it from power problems that can damage or destroy your appliances. Power problems such as voltage fluctuations, power surges, and power outages can occur at any time and for various reasons. They can cause overheating, fire, explosion, data loss, or a reduced lifespan of your equipment. That's why you need power protection devices that can prevent or mitigate the effects of these power problems. This blog post covers three key types of power protection devices: fuses, circuit breakers, and surge protection devices.

  1. Fuses

Fuses are a fundamental, low-cost form of overcurrent protection that operates by melting a thin metal strip when currents exceed a certain threshold. This breaking action interrupts the flow of electricity, preventing damage from overloads. While reliable, fuses must be replaced after each fault and cannot protect against all power issues, such as voltage surges. They are best suited for applications where cost efficiency and simplicity are prioritized, making them ideal for homes and smaller electrical systems.

Advantages

  • Simple Design and Reliability: Fuses are reliable and have a straightforward design that directly interrupts current flow upon current overload, providing a quick response to overcurrent situations.

  • Circuit Protection: When the fuse "blows" or melts, it simply breaks the circuit, stopping the flow of electricity. This protects equipment from overcurrent, which can lead to overheating, fires, or even explosions.

  • Cost-Effective: Fuses are generally less expensive than circuit breakers and require minimal maintenance.

  • Fast Response to Small Currents: They respond effectively to small overcurrent situations, which can make them useful in sensitive applications.

Disadvantages

  • Non-Reusable: They are designed for single-use only and once a fuse blows it must be replaced each time, which can be inconvenient and costly over time.

  • Limited Control: Fuses are single-use devices with no reset functionality; they only protect against overcurrent and provide no protection against voltage spikes or power outages, limiting their application.

  • Potential Safety Hazard: Incorrect replacement (e.g., using a higher-rated fuse) can lead to safety hazards, such as fire risks or damage to equipment.

  1. Circuit Breakers

Circuit breakers are reusable devices that protect electrical systems by interrupting excessive current flow. Unlike fuses, they can be reset, allowing for repeated protection without replacement. They also guard against short circuits and ground faults, making them versatile for both residential and industrial use. However, circuit breakers are generally more expensive than fuses, require routine maintenance due to mechanical wear, and respond more slowly to faults, which can affect sensitive electronics.

Advantages

  • Automatic Tripping: Unlike Fuses circuit breakers can automatically switch off the circuit when the current exceeds a predetermined level.

  • Reusable and Convenient: Circuit breakers can be reset after tripping, providing convenience and long-term cost-effectiveness.

  • Versatile Protection: They offer adjustable trip settings, providing greater flexibility and adaptability for various protection needs.

  • Greater Safety Features: Modern circuit breakers include advanced protection options such as arc fault and ground fault interruption, adding an extra layer of safety.

Disadvantages

  • Higher Cost and Maintenance: Circuit breakers are generally more expensive than fuses, especially advanced models with additional protection features​

  • Controlled Protection: Circuit breakers protect against overcurrent and short-circuit but they do not protect against voltage fluctuations or power surges.

  • Complexity: They have more components that require maintenance, and malfunction risks are higher due to their mechanical parts.

  • Slower Response: They also have a slower response time than fuses and may not be able to prevent damage to sensitive equipment.

  1. Surge Protection Devices

Surge Protection Devices (SPDs) protect electrical equipment from sudden voltage spikes by diverting excess voltage to the ground, making them crucial for safeguarding electronics from events like lightning strikes or switching surges. SPDs can handle multiple surges over time, but they may degrade with repeated use, eventually requiring replacement. While effective for transient events, SPDs do not protect against prolonged overvoltage or sustained current flow, often necessitating use alongside other protective devices.

Advantages

  • Protects Against Voltage Surges: SPDs shield equipment from transient voltage spikes, prolonging device lifespan and reducing the risk of damage

  • Variety of Options: SPDs come in different types and ratings depending on the application and the level of protection required.

  • Low Maintenance: SPDs generally require minimal maintenance, making them cost-effective in the long run.

Disadvantages

  • Limited Protection: SPDs are designed for voltage surges but do not protect against sustained overvoltages or other electrical faults​.

  • Finite Protection Capability: Surge protectors degrade over time and may fail after repeated surges, requiring replacement to maintain effectiveness.

  • Fire Risk: If improperly installed or overloaded, SPDs can overheat, posing a fire hazard.

Conclusion

Power protection devices are essential for safeguarding electrical equipment from various power problems that can harm them. Fuses, circuit breakers, and surge protection devices are three main types of power protection devices that have different functions and advantages.

  • Fuses protect against overcurrent by breaking the circuit when the current exceeds a certain level.

  • Circuit breakers protect against overcurrent and short circuits by switching off the circuit when the current exceeds a predetermined level.

  • Surge protection devices protect against voltage spikes by diverting or suppressing excess voltage to the ground or a neutral wire.

Depending on the type and sensitivity of the equipment, one or more types of power protection devices may be needed to ensure optimal performance and safety.
